Tsurumi VANCS Pumps Include:  Free Ground Freight*
(*most continental U.S. locations)
Tsurumi
Model
Horse -
power
Max
Head
(ft)
Max
GPM
Cable
Length
(ft)
Dimensions
Diameter x
Height (inch)
Price
2 Inch Discharge Pumps
3PN
50PN2.25S
1/3
23
40
19
9.625 x
16.25
$420.00
50PNA2.25S
(Automatic)
1/3
23
40
19
9.625 x
16.25
$442.00
4PN
50PN2.4S
1/2
43
80
43
9.625 x
16.25
$530.00
50PNA2.4S
(Automatic)
1/2
43
80
43
9.625 x
16.25
$531.25
8PN
50PN2.75S
1
55
90
55
9.625 x
16.25
$620.00
50PNA2.75S
(Automatic)
1
55
90
55
9.625 x
16.25
$625.60
The above pumps are 110 Volt.  Other voltages available by special order.
Please call for price & availability.  Toll free: 1-800-882-4959
PN - Series:  Semi-vortex wastewater pumps
    Applications:
  • Residential, commercial, industrial, effluent, wastewater and site drainage
  • Chemical spill containment
  • Decorative waterfalls, fountains and fish ponds
  • Raw water supply from rivers and lakes
PN Series Semi-Vortex handle solids up to 1" in diameter.

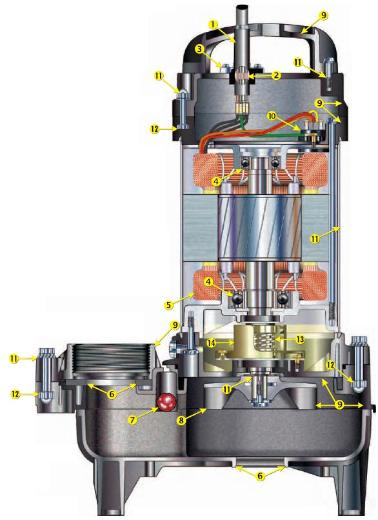

One piece molded
cable entrance
incorporates:
    1. Cable Boot:
    Prevents kinking at cable
    entrance by extending
    handling radius
    2. Anti-Wicking
    block: Prevents water
    incursions due to capillary
    wicking, should the power
    cable be damaged or the
    end submerged
    3. Limited
    Tightening Plate:
    Prevents over tightening of
    boot compression screws -
    provides strain relief.
Highly efficient air
filled motor
incorporates:
    4. Permanently lubricated,
    double shielded, single
    row, deep grove, high
    temperature C3 ball
    bearing rated, B-10 =
    60,00 Hours.
    5. Copper Winding with
    Class E Insulation
    6. Pump end
    designed to be
    hydraulically
    correct: for a wide
    variety of applications
Low internal
velocities
extends life of
impeller and
volute.
Operates at lower
temperatures, Extending
insulation and bearing life.
    7. Built in Ball
    Check and Air
    Relief Valve:
    Prevents air locking
    8. Semi Vortex
    Impeller: Handles long
    stringy materials and
    large diameter solids
    9. Application
    Appropriate Resin
    and Fiberglass
    (FRP): Resistant to high
    or low temperatures,
    impact, chemicals, and
    corrosion
    10. Circle Thermal
    Motor Protector:
    Protects against over
    amperage, overheating,
    and run-dry
    11. Stainless Steel
    Motor Frame,
    Shaft & Fasteners:
    Provides protection
    against corrosion
    12. Molded in
    Stainless Steel
    Anchors for each
    fastener: Increases
    structural integrity
    13. Double Inside
    Mechanical Seal
    with Silicon
    Carbide Faces:
    Assures the longest
    operational life of any seal
    available
    14. Oil Lifter:
    Lubricates the seal faces
    down to 1/3 of normal oil
    level and extends seal life
    by ten times - uses no
    additional power
Pumps designed for:
Landscaping, Ponds, &
Waterfalls
Call Toll Free: 1-800-882-4959
Please ask for internet sales
Quantities limited to available stock.  Prices subject to change without website update.
