Concrete Gas Saws
Quick Comparison Guide.
Gasoline Powered Concrete Cutting Chain Saws
 |
 |
 |
||
|
Starting at: $1,195.00
|
Starting at: $1,995.00
|
Starting at: $2,197.25
|
||
All ICS Gas Saws have 2-Stroke, single cylinger air cooled engines. |
 |
 |
 |
Model |

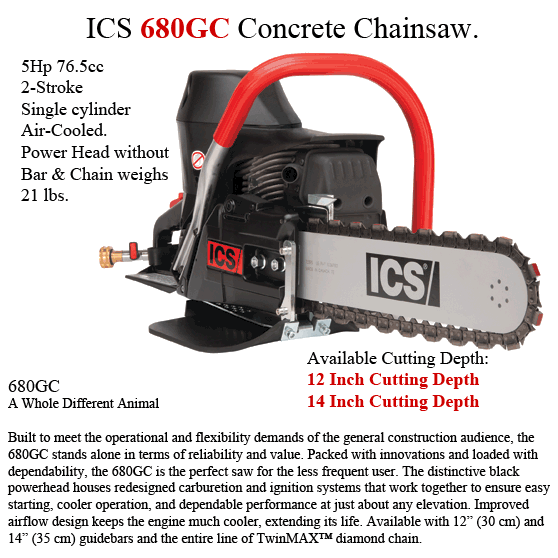

680GC |
695GC |
695F4 |
Engine Displacement
|
77cc 5.0Hp |
94cc 6.4Hp |
94cc 6.4Hp |
Max Cutting Depth
|
14" |
16" |
16" |
Power Head Weight: Weight without bar & chain
|
21 Lbs |
21 Lbs |
21 Lbs |
Power Head Dimensions
|
18" Length 11.5" Height 10.0" Width |
19" Length 14" Height 12" Width |
19" Length 14" Height 12" Width |
Fuel Capacity
|
0.23 Gallons 15-18 Minutes |
0.26 Gallons 12-15 Minutes |
0.26 Gallons 12-15 Minutes |
Engine Speed
|
11,500 RPM + or - 500 |
9,300 RPM + or - 150 |
9,300 RPM + or - 150 |
Starting price with smallest available bar & chain. |
$1,195.00
P/N 545058
12" Package |
$1,995.00
P/N 544107
14" Package |
$2,205.75
P/N 553463
12" Package |
Starting price with largest available bar & chain. |
$1,275.00
P/N 545099
14" Package |
$2,075.00
P/N 544108
16" Package |
$2,316.25
P/N 546804
16" Package |
Replacement diamond chain starting prices |
$331.50
|
$369.75
|
$556.75
|
Replacement guide bar starting prices |
$144.00
|
$180.00
|
$144.00
|
ICS Gas Saw Compatibility Breakdown
Saw Model |
Power Head |
Drive Sprocket |
Guide Bar |
Diamond Chains |
|
An inexpensive 2-Cycle gas saw that is great for the entry-level occasional concrete cutter.
| 70949 |
|||
|

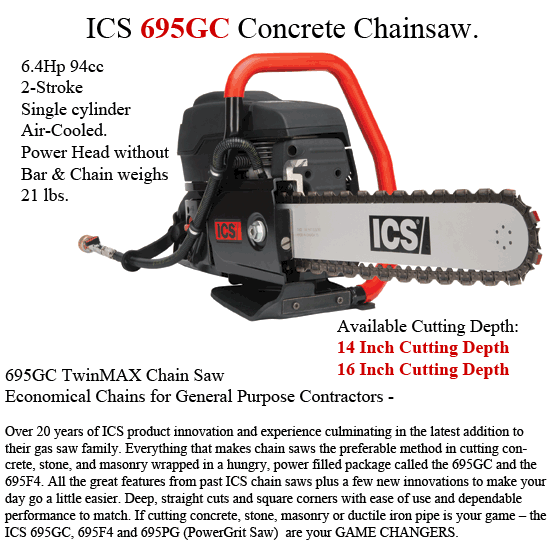

Equipped with sprocket 70949 the 695(Series)Power Head is referred to as a 695GC. Economical chains.
|
||||

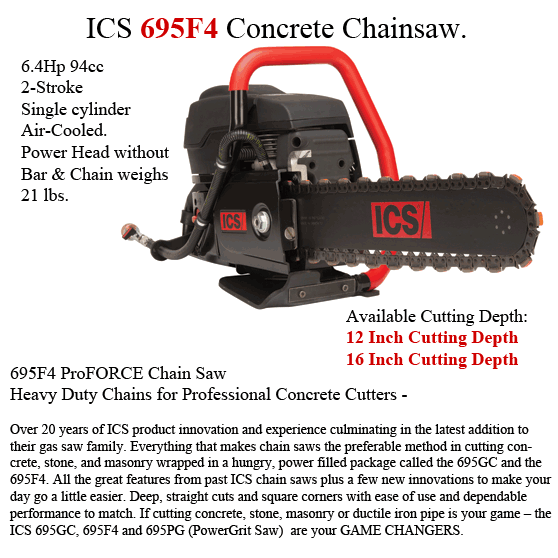

Equipped with sprocket 525496 the 695(Series) Power Head is referred to as a 695F4. Professional grade longer lasting chains. |
525496 |
|||
PowerGrit
|
Also equipped with a 525496 sprocket the 695(Series) Power Head can be referred to as a 695PG when sold with PowerGrit Ductile Iron chains. |
Saw Comparisons:
 |
The more often you plan on using your saw, the greater the benefit from using a larger saw becomes. Higher Horsepower (Hp) saws are capable of maintaining the necessary cutting RPM's under stronger loads resulting in faster cutting speeds. |
